PVC Coated Braid Yarn
PVC as the standard for electrical wire harness protection — with PVDF and TPE coated braid yarns available for the most demanding chemical and thermal applications.

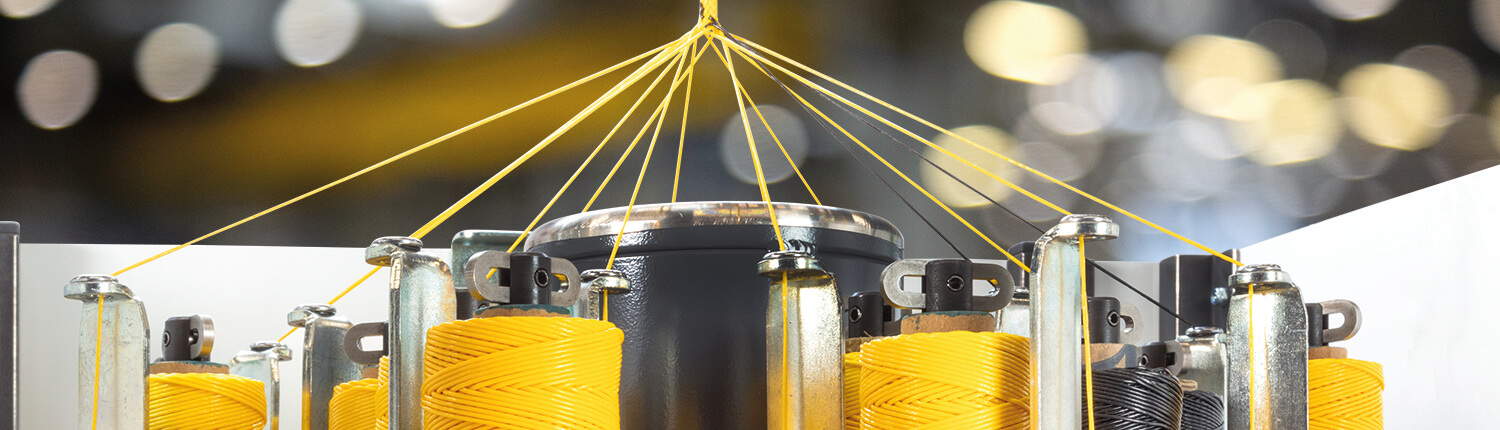

Extrusion coated yarn for harness braiding

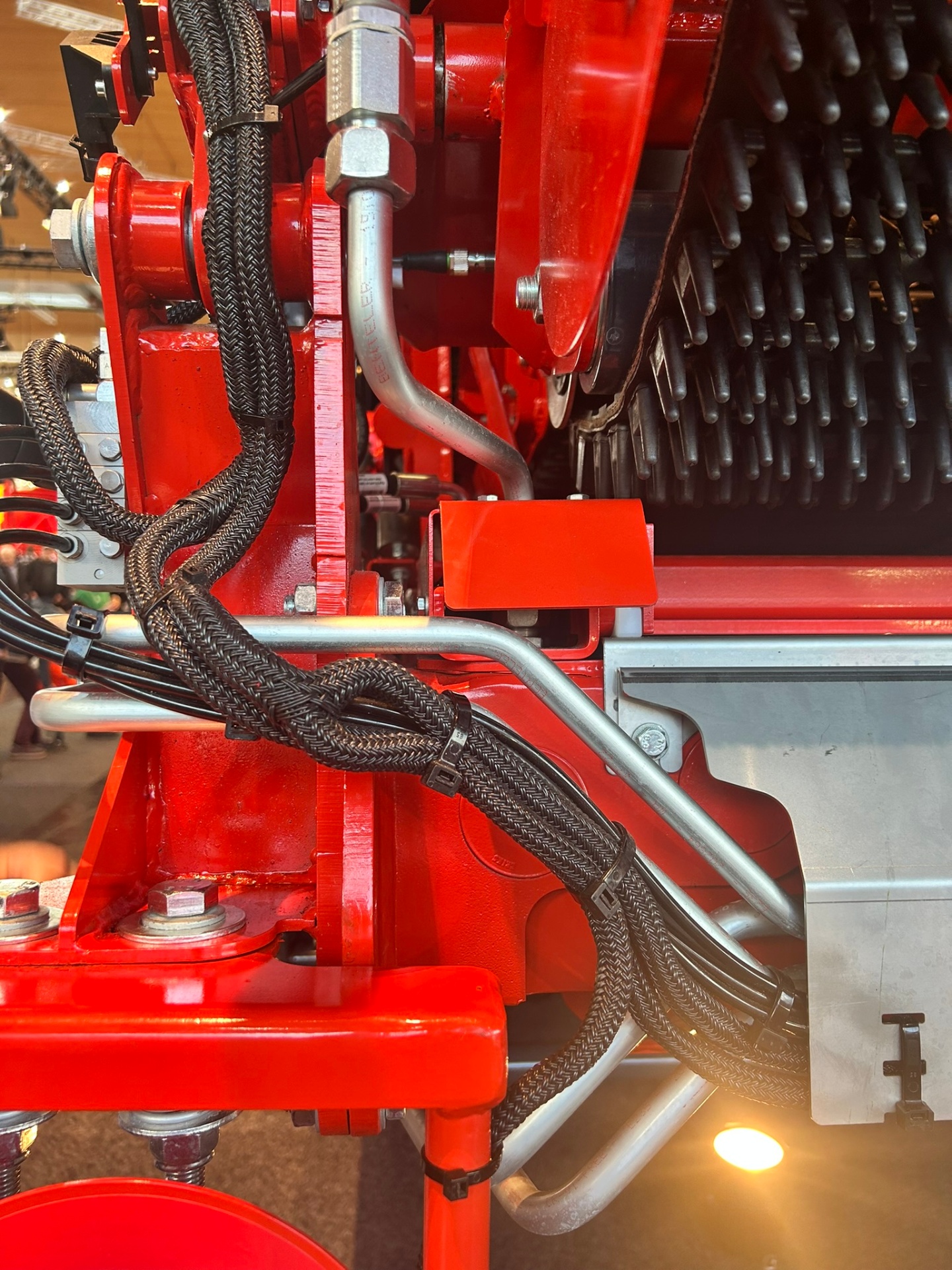

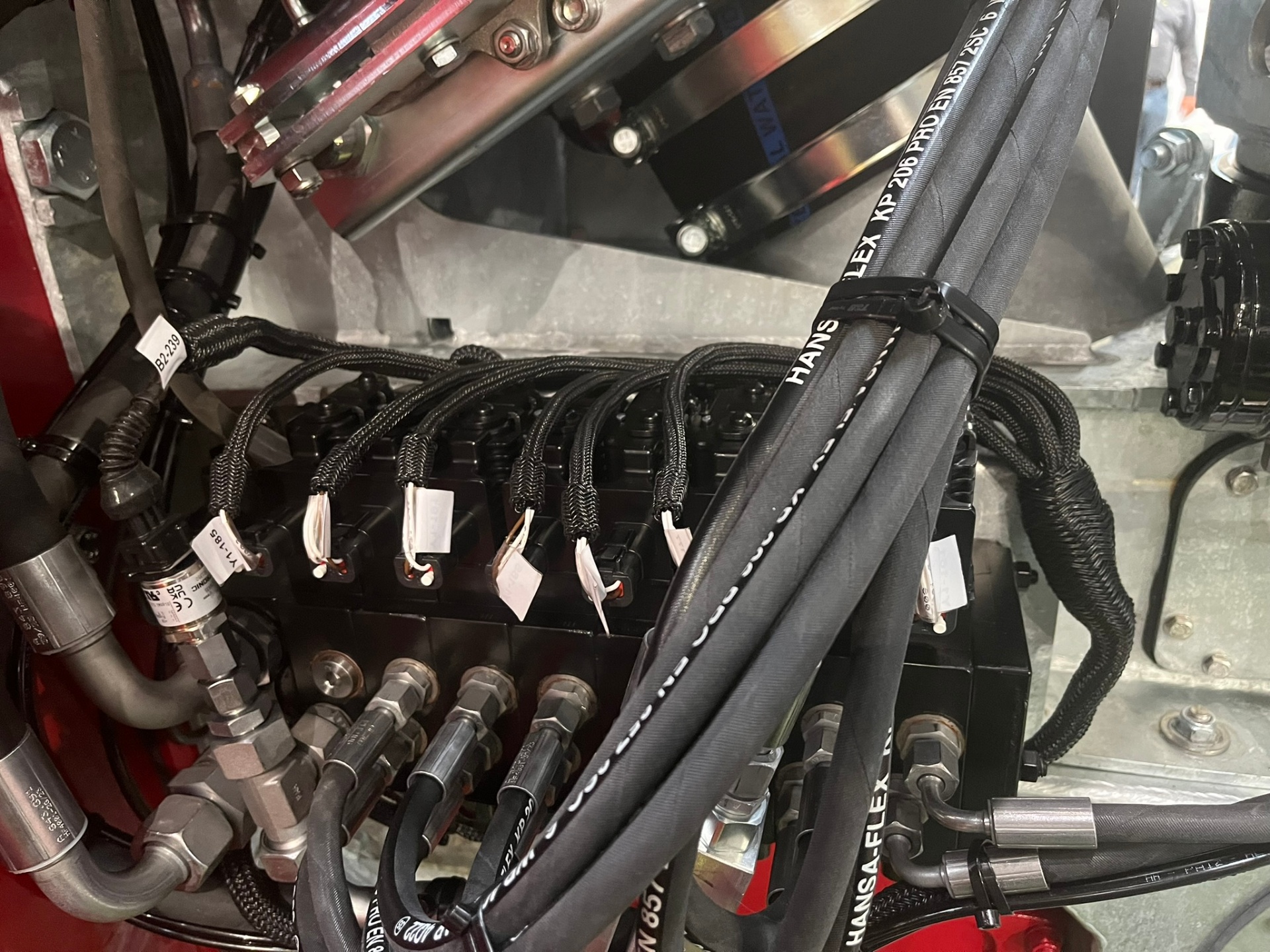

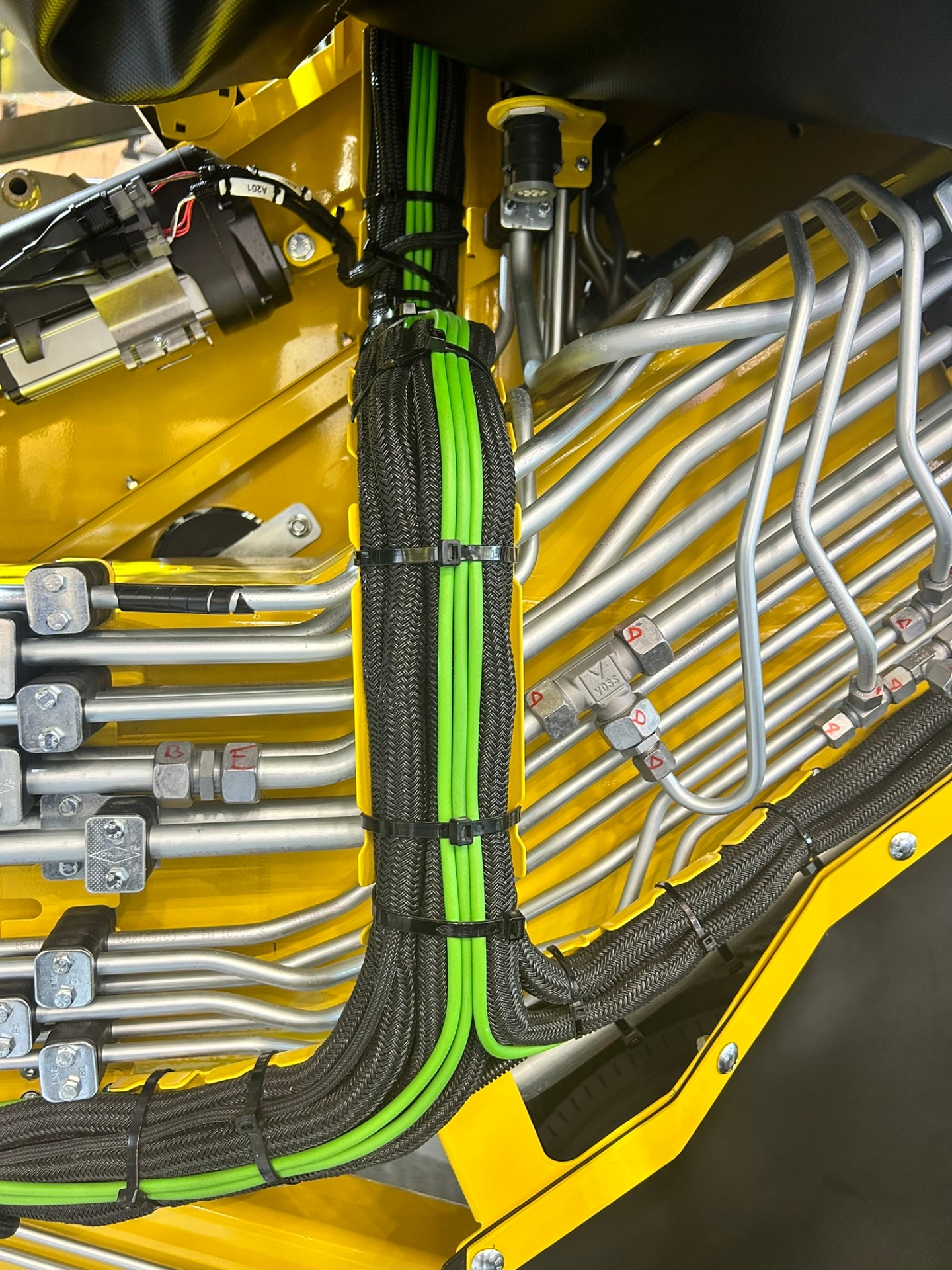

Braid yarn is a high-tenacity synthetic multifilament core fully encapsulated in an extruded polymer jacket. Braided around an electrical wire bundle, it forms a protective sleeve that shields the harness against abrasion, weathering, temperature swings and aggressive fluids.
Polyvinyl Chloride (PVC) is the proven standard. For the most demanding chemical and thermal environments we also supply PVDF and TPE coated braid yarns.
The proven base for harness protection
Our PVC compound is engineered with proprietary additives for exceptional weathering, moisture and abrasion resistance, cold flexibility, fire resistance with retardance, and resistance to oil, grease and engine fluids. PVC also delivers a uniform surface that braids cleanly at high production speeds.
PVDF and TPE for the toughest jobs
Where PVC reaches its limits, our PVDF and TPE coated braid yarns take over — engineered for extreme temperatures, aggressive chemicals and demanding mechanical loads.
PVDF — Polyvinylidene Fluoride
A fluoropolymer coating with outstanding chemical and thermal stability. Specified where harnesses face aggressive solvents, fuels or sustained high temperatures.
- Temperature: continuous service - 54°C / +150 °C
- Chemicals: excellent against acids, hydrocarbons and fuels
- Applications: automotive, aerospace, chemical processing
TPE — Thermoplastic Elastomer
A flexible elastomeric coating delivering superior abrasion resistance and cold-flex performance. Ideal for harnesses that move, vibrate or operate at low temperatures.
- Temperature: flexible down to -54 °C / 138 °C
- Mechanical: superior abrasion and flex-fatigue resistance
- Applications: construction, agriculture, off-highway equipment
LSZH-ready without a separate variant
If your spec calls for LSZH materials, the TPE-coated yarn qualifies. The coating contains no chlorine or fluorine, meeting halogen-free requirements without a separate product variant.
Rail interiors under EN 45545 are a typical application. So are automotive and industrial harnesses where fire-safety or low-emission specs rule out PVC.
EY-1877 runs from -54°C to +138°C and holds up well against abrasion, oil, and engine fluids. The halogen-free coating does not come at the cost of mechanical performance.
Standard and custom colours
Identify, code or brand your harness — choose from our standard palette or specify a custom colour for your project.
Smart solutions, your specs
Smart solutions can be developed to optimise a braid yarn for your specific application. Through an innovative combination of high and low tenacity, monofilament or multifilament core fibers, metal yarns and selected polymer coatings, we deliver products that perform under the most demanding conditions.
- Core fibers on demand
- High & low tenacity options
- Mono- or multifilament cores
- Polymer coatings to spec
Braiding outperforms tapes, sleeves and fittings
Practical advantages of a braided sleeve over conventional harness protection.
- No liquid or moisture retention
- No trapping of particulate matter
- Heat dissipation
- Minimal wire-to-wire movement
- Smaller harness diameter
- Flexible even at low temperatures
- No tape or fittings required
- Easier installations
- Tamper-proof
- Retains appearance over time
- Enhanced wear resistance
- Longer harness lifetime
Discuss your braid yarn requirements
Specify substrate, coating, colour and denier for your harness — from prototype to production volumes.
